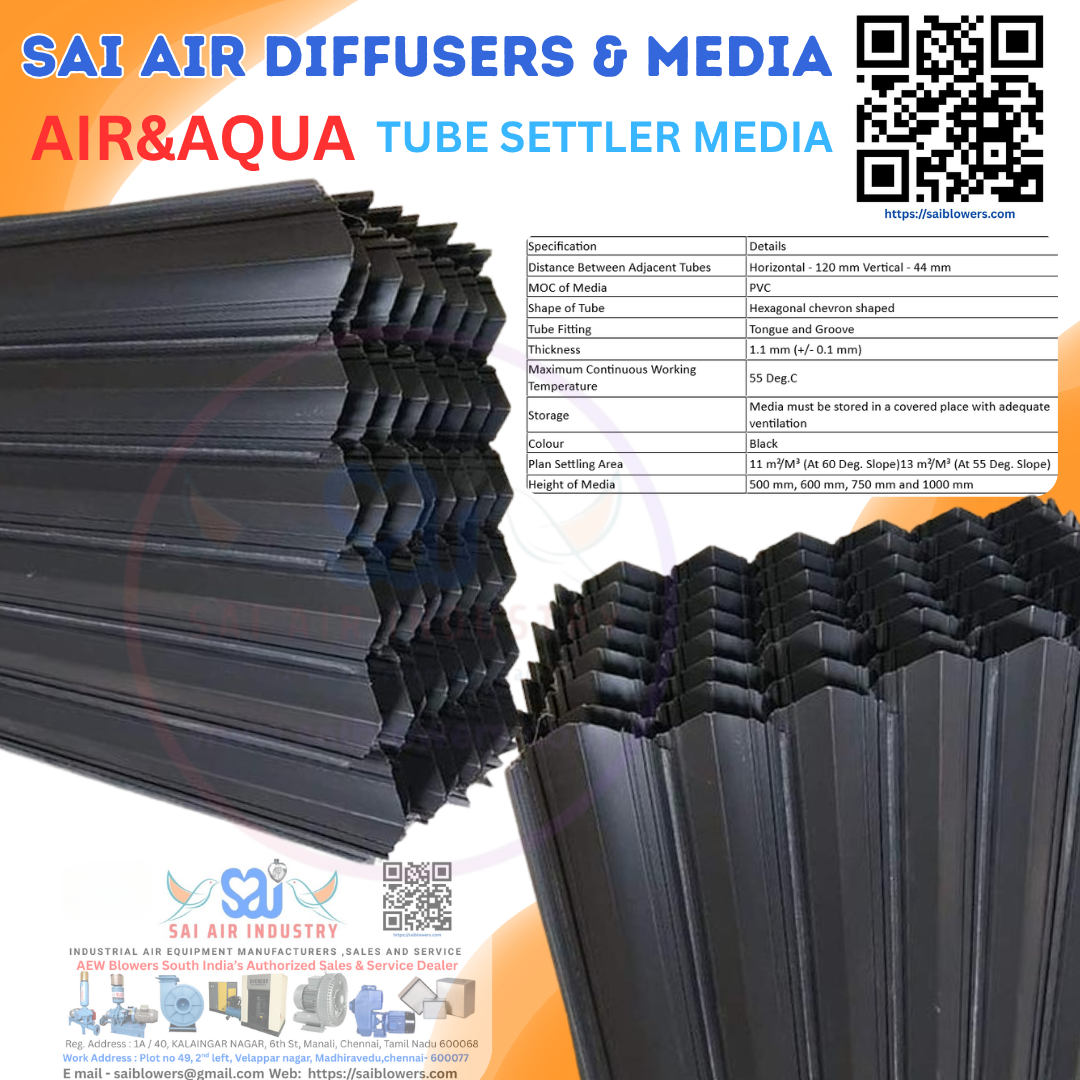

AIR&AQUA Tube Settler Media is engineered to improve sedimentation and clarification processes by maximizing the settling surface area within clarifiers and sedimentation tanks. The specially designed hexagonal chevron channels allow suspended particles to settle quickly, resulting in superior solid-liquid separation and improved water quality.
Tube Settler technology is widely used in modern treatment plants to increase clarifier capacity without requiring larger tanks, making it a cost-effective solution for both new installations and plant upgrades.
Tube Settler Media consists of multiple inclined tubular channels arranged in a honeycomb structure. As water flows upward through the tubes, suspended solids settle onto the tube surfaces and slide downward into the sludge collection zone.
This process dramatically increases the effective settling area and improves clarification efficiency compared to conventional sedimentation systems.
| Parameter | Specification |
|---|---|
| Brand | AIR&AQUA |
| Product Type | Tube Settler Media |
| Material of Construction | PVC |
| Shape of Tube | Hexagonal Chevron Shaped |
| Tube Fitting | Tongue and Groove |
| Thickness | 1.1 mm (± 0.1 mm) |
| Distance Between Adjacent Tubes | Horizontal: 120 mm, Vertical: 44 mm |
| Maximum Continuous Working Temperature | 55°C |
| Colour | Black |
| Plan Settling Area | 11 m²/m³ (at 60° slope), 13 m²/m³ (at 55° slope) |
| Available Heights | 500 mm, 600 mm, 750 mm, 1000 mm |
| Storage Requirement | Covered area with adequate ventilation |
Enhances settling performance without increasing tank dimensions.
Provides efficient removal of suspended solids and turbidity.
Allows compact treatment plant designs with higher processing capacity.
Reduces the size and construction cost of sedimentation tanks.
Improves clarification and downstream treatment performance.
Modular construction simplifies transportation, assembly, and installation.
Manufactured from high-quality PVC for durability and reliability.
Used in sedimentation tanks for drinking water treatment and clarification processes.
Improves settling efficiency in secondary clarifiers and treatment systems.
Supports industrial wastewater clarification and solids removal.
Enhances water purification and clarification processes.
Suitable for chemical, textile, pharmaceutical, food processing, paper, and manufacturing industries.
Provides effective removal of suspended solids from raw water sources.
Ideal for upgrading existing clarifiers and increasing treatment capacity.
AIR&AQUA Tube Settler Media is designed to deliver maximum clarification efficiency with minimal space requirements. Its advanced hexagonal chevron design, durable PVC construction, and high settling area make it one of the most effective solutions for water and wastewater treatment facilities.
Whether for municipal water treatment plants, sewage treatment plants, industrial wastewater treatment systems, or clarifier upgrades, AIR&AQUA Tube Settler Media provides reliable performance, reduced operational costs, and improved treatment efficiency.
