EBM-PAPST R2E250-AS47-05 Backward Curved Centrifugal Fan for HVAC systems, air handling units, industrial ventilation, clean rooms, and process air applications

EBM-PAPST R2E250-AS47-05 Backward Curved Centrifugal Fan Sales & Service in South India

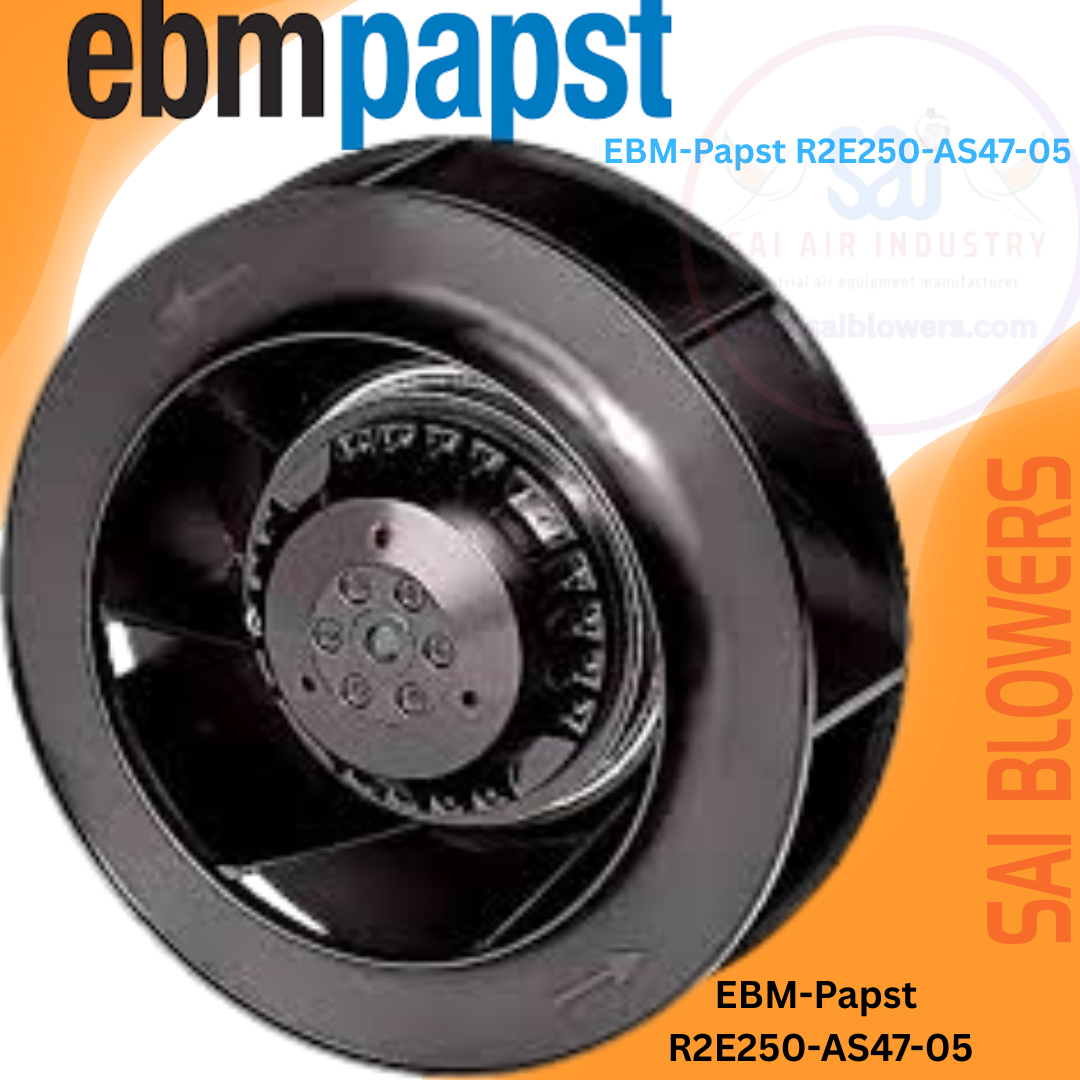

The EBM-PAPST R2E250-AS47-05 is a high-efficiency AC centrifugal fan featuring a backward-curved impeller and single-inlet design. Engineered for continuous-duty industrial applications, it offers excellent airflow performance, stable pressure characteristics, low maintenance requirements, and long operational life. The fan is equipped with a ball-bearing motor and thermal overload protection for enhanced reliability.

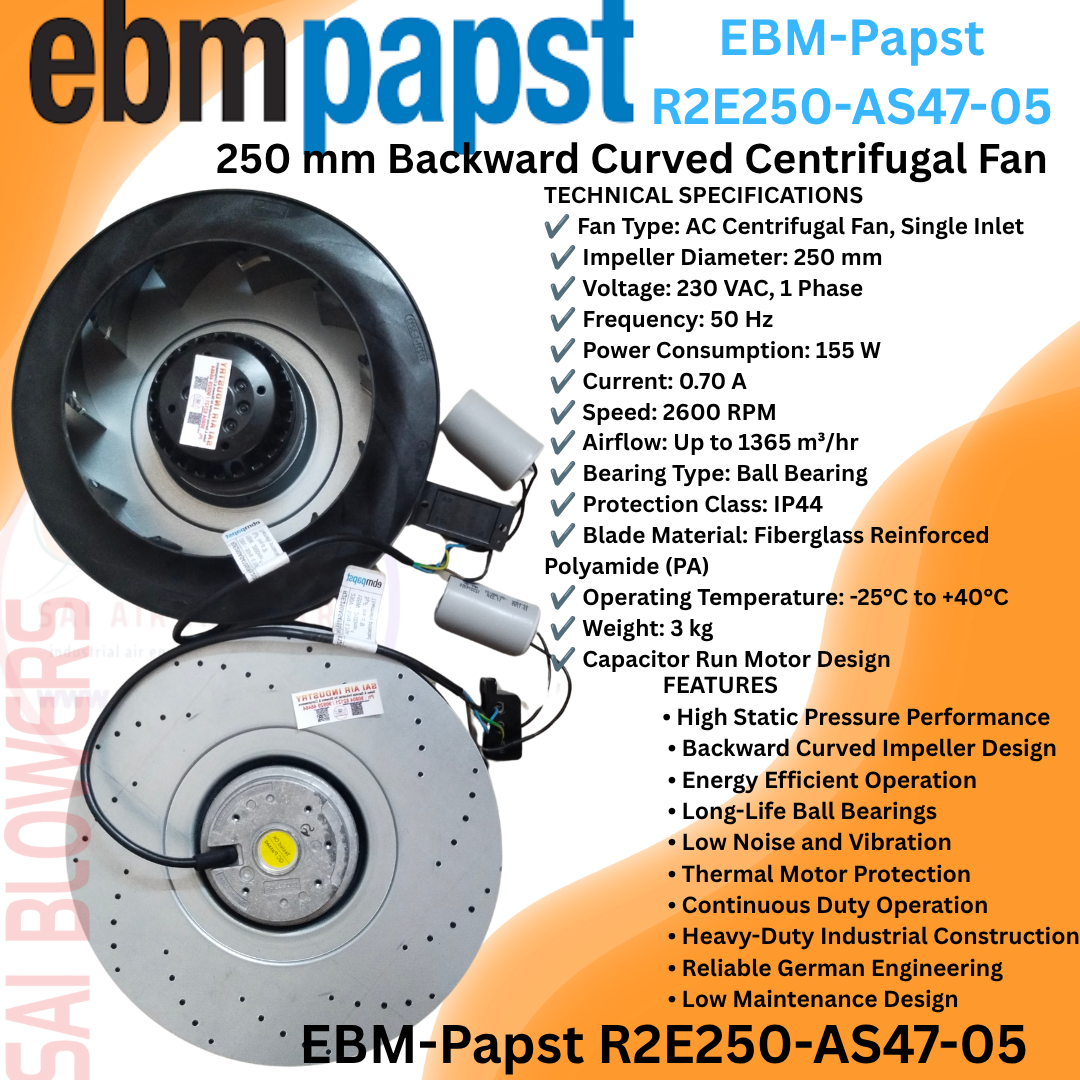

Technical Specifications

Parameter	Specification
Model	R2E250-AS47-05
Fan Type	AC Centrifugal Fan
Impeller Type	Backward Curved
Impeller Diameter	250 mm
Voltage	230 VAC
Frequency	50 Hz
Motor Type	Single Phase AC Motor
Speed	2600 RPM
Power Input	155 W
Current Rating	0.70 A
Capacitor	5 µF
Bearing Type	Ball Bearing
Protection Class	IP44
Insulation Class	Class B
Operating Temperature	-25°C to +40°C
Storage Temperature	-40°C to +80°C
Weight	Approx. 3 kg
Protection	Thermal Overload Protector (TOP)
Number of Blades	11 Blades

Key Features

Backward Curved Impeller Design

Provides high efficiency, improved pressure generation, and lower energy consumption.

Reliable Continuous Operation

Built with high-quality ball bearings and thermal overload protection for long-term industrial use.

High Airflow Performance

Capable of delivering airflow up to approximately 1365 m³/h under free-air conditions.

Industrial Grade Construction

Features a fiberglass-reinforced polyamide impeller and robust metal construction suitable for demanding environments.

Low Maintenance Design

Engineered for dependable operation with minimal maintenance requirements.

Applications

The EBM-PAPST R2E250-AS47-05 is widely used in:

Air Handling Units (AHU)
HVAC Systems
Industrial Ventilation Systems
Clean Room Applications
Pharmaceutical Manufacturing Plants
Food Processing Industries
Electrical Control Panels
Water Treatment Plants (WTP)
Sewage Treatment Plants (STP)
Effluent Treatment Plants (ETP)
Fresh Air Ventilation Systems
Process Cooling Equipment
Dust Collection Systems
Commercial Ventilation Systems
