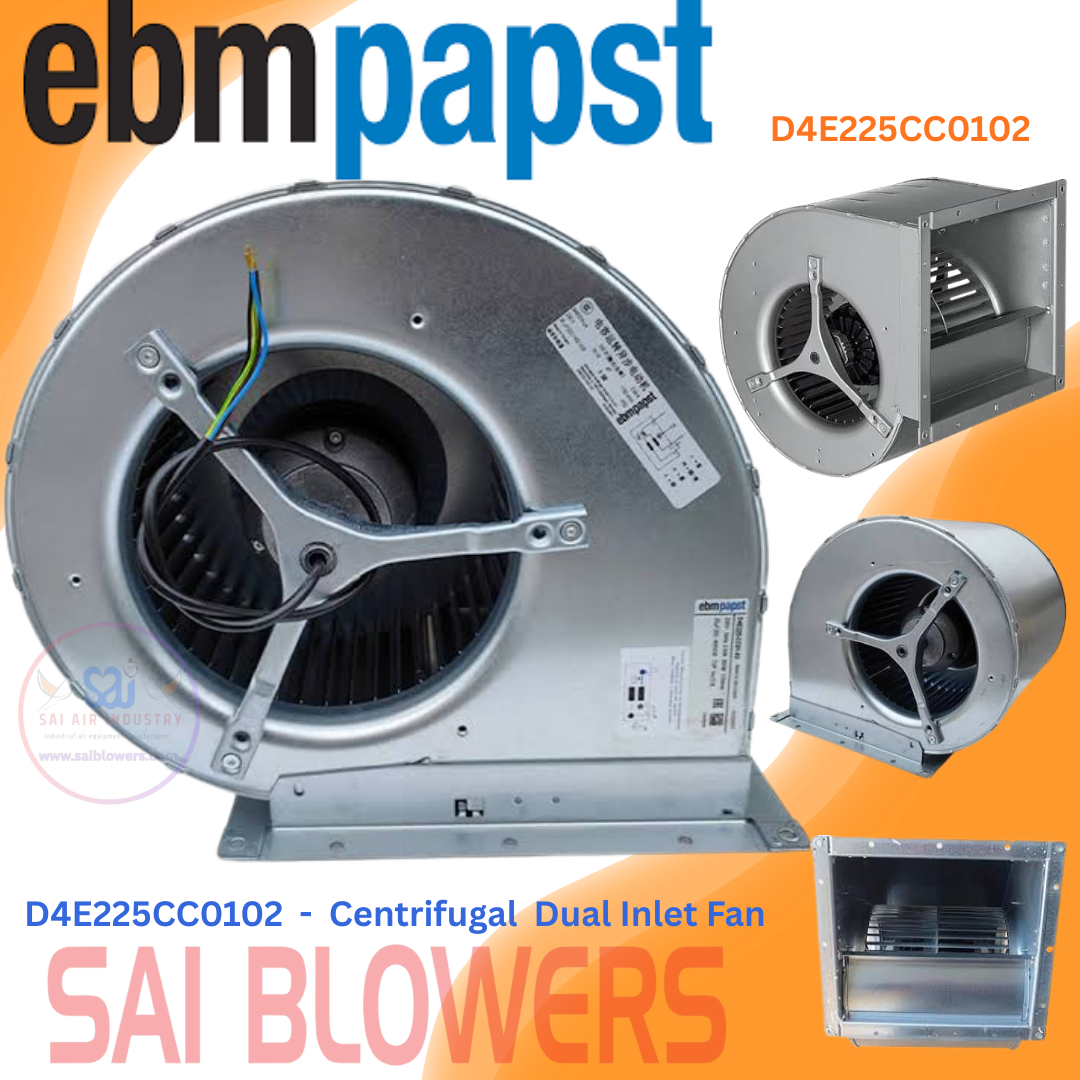

The EBM-PAPST D4E225-CC01-02 is a single-phase AC centrifugal blower engineered for medium to high airflow applications requiring stable performance and efficient air distribution. Its robust metal construction, ball-bearing motor, and backward-curved impeller design make it suitable for continuous industrial operation.
| Parameter | Specification |
|---|---|
| Model | D4E225-CC01-02 |
| Fan Type | AC Centrifugal Blower |
| Supply Voltage | 230 VAC |
| Frequency | 50 Hz |
| Motor Type | Single Phase AC Motor |
| Power Consumption | 650 W |
| Current Rating | 2.84 A |
| Airflow Capacity | Up to 2650 m³/h |
| Speed | 1150 RPM |
| Sound Level | 65 dB(A) |
| Bearing Type | Ball Bearing |
| Protection Class | IP22 |
| Housing Material | Metal |
| Impeller Material | Metal |
| Operating Temperature | -25°C to +40°C |
| Storage Temperature | -40°C to +80°C |
Delivers airflow up to 2650 m³/h for industrial ventilation and HVAC applications.
Designed with high-quality ball bearings and industrial-grade construction for long operational life.
Optimized motor performance helps maintain airflow efficiency while reducing operating costs.
Metal housing and impeller provide durability in demanding operating conditions
The D4E225-CC01-02 blower is widely used in:
